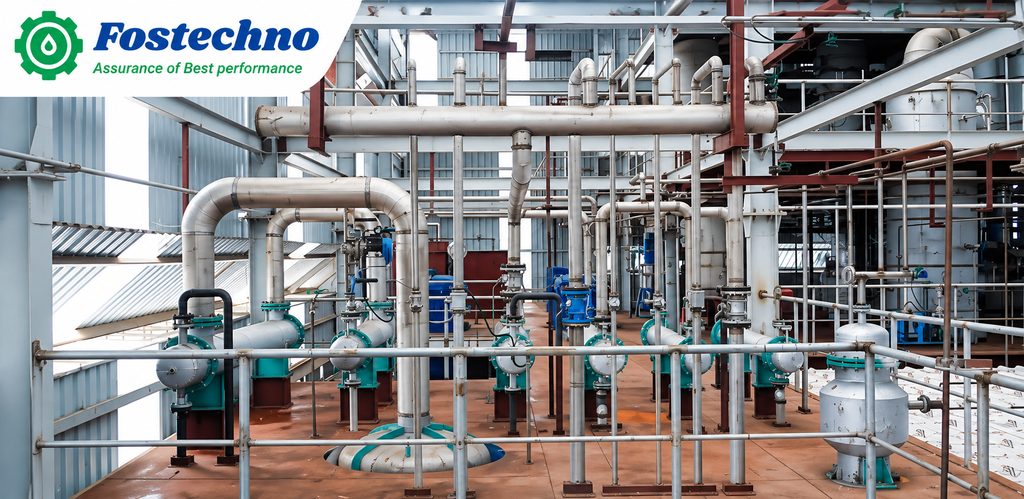

Methanol Rectification: How Crude Methanol Becomes High-Purity Product
Methanol is one of the most widely used chemical building blocks in the world. It goes into formaldehyde, acetic acid, MTBE, biodiesel, dimethyl ether (DME), olefins, solvents, antifreeze and fuel blends. Every one of those uses depends on one thing: purity.
The methanol that leaves a synthesis loop is not the product customers buy. It is crude methanol, a mixture of methanol, water, dissolved gases and a long list of organic by-products. The step that turns it into commercial-grade methanol is methanol rectification, a carefully engineered sequence of distillation operations.
At FOSTECHNO Process & Engineering Private Limited, we work on exactly this kind of process engineering. This guide explains how methanol rectification works, what drives its design and what to consider when planning a plant of your own.
What Is Methanol Rectification?
Rectification is a form of distillation in which vapor and liquid flow in opposite directions through a column. The repeated contact between the two phases separates components by differences in volatility. Methanol rectification applies this principle to crude methanol so that:
- light components such as dissolved gases, dimethyl ether and methyl formate leave from the top,
- water and heavy components such as higher alcohols leave from the bottom or from side draws, and
- pure methanol is collected as a controlled product stream.
The process is more than “boil it and condense it.” Methanol forms azeotropes with several impurities, the impurities exist at ppm levels but matter greatly to product quality, and the specifications are demanding. A good rectification section is built around a clear understanding of the impurity profile and of vapor–liquid behavior.
Where Crude Methanol Comes From
Modern methanol is produced by catalytic conversion of synthesis gas (a mixture of carbon monoxide, carbon dioxide and hydrogen) over a copper-zinc-alumina catalyst, typically at 50–100 bar and 200–300 °C. The main reactions are:
- CO + 2H₂ → CH₃OH
- CO₂ + 3H₂ → CH₃OH + H₂O
The synthesis gas can come from natural gas reforming, coal or petcoke gasification, biomass gasification, or the combination of captured CO₂ with green hydrogen. Whatever the route, the reactor effluent is cooled, and the condensed liquid is sent to a letdown or flash vessel as crude methanol.
This is where rectification begins.
What Is in Crude Methanol?
Crude methanol composition varies with feedstock, catalyst age, reactor design and operating conditions. A typical crude contains:
Water. Usually the largest impurity, from a few percent to around 20% by weight depending on the CO₂ content of the synthesis gas and the process route.
Dissolved gases. CO₂, CO, H₂, CH₄ and N₂ released when the liquid is depressurized.
Light organic compounds. Dimethyl ether (DME), methyl formate, acetaldehyde, and low-boiling hydrocarbons.
Ketones and aldehydes. Acetone and other carbonyl compounds, which are especially troublesome for product quality tests.
Higher alcohols. Ethanol, propanol, butanol and heavier alcohols, often called fusel oil or higher alcohols.
Esters and acids. Methyl acetate, methyl formate, formic acid and acetic acid in small amounts.
Heavy hydrocarbons. Paraffinic compounds and waxes formed through side reactions, usually described as higher hydrocarbons.
Trace contaminants. Amines, sulfur compounds, chlorides, and metal species such as iron carbonyl or catalyst-derived traces.
Most of these are present at low concentrations, but a few ppm of the wrong compound can make an entire batch off-specification. The rectification system therefore has to be designed around each impurity group, not only around the water–methanol split.
Product Specifications and Grades
Commercial methanol is sold against defined specifications. The most commonly referenced are the US Federal Grade AA standard and the IMPCA specification used in international trade. The key parameters include:
- Methanol purity, typically 99.85% by weight minimum
- Water content, typically 0.1% by weight maximum
- Acetone and aldehydes, in the range of a few tens of ppm
- Ethanol, in the range of a few tens of ppm
- Acidity (as acetic acid), around 30 ppm maximum
- Permanganate time (KMnO₄ test), a sensitive test for trace oxidizable impurities
- Color (APHA scale), non-volatile residue, chloride and sulfur limits
- Distillation range, a narrow window around the boiling point of methanol (about 64.6 °C at atmospheric pressure)
Grade requirements differ from one end use to another. Methanol going to a formaldehyde plant has different sensitivities from methanol going to a pharmaceutical or electronic application. Clarifying the target grade is the first step in designing the rectification section, because it determines the number of columns, the internals, the reflux and the quality-control approach.
The Science Behind Methanol Distillation
Understanding a few fundamentals makes the rest of the flowsheet easy to follow.
Boiling points and relative volatility
Methanol boils at about 64.7 °C at atmospheric pressure. Water boils at 100 °C, so the methanol–water split is relatively straightforward. It does not form an azeotrope, and the relative volatility is comfortably above one across most of the composition range, though it tightens at the dilute methanol end. This is why the refining column needs enough stages and a sensible reflux ratio.
Light impurities such as DME (boiling point about −24 °C) and methyl formate (about 32 °C) are far more volatile and leave overhead easily. Higher alcohols such as ethanol (78 °C), propanol (97 °C) and butanol (117 °C) are heavier, but they do not all behave the way simple boiling points suggest. Some concentrate in the middle of the column rather than leaving at the bottom, which matters for side-draw design.
Azeotropes and difficult separations
Methanol forms azeotropes or near-azeotropes with several compounds, including methyl formate, acetone and certain hydrocarbons. This is one reason a single column cannot give a high-purity product. Where simple distillation struggles to separate a close-boiling or azeotropic impurity, process designers use techniques such as:
- Extractive distillation with water. Adding water in the topping column changes the relative volatility of methanol against hydrocarbons and ketones, helping to carry them overhead.
- Chemical treatment. Dilute caustic added to the feed neutralizes acids and hydrolyzes esters, converting some difficult impurities into forms that are easier to remove.
- Side-draw withdrawal. Impurities that build up in the middle of a column are bled out at the tray where they concentrate.
Why stage count and reflux matter
The separation power of a column comes from its number of theoretical stages and its reflux ratio. Too few stages or too little reflux leads to impurities carrying into the product. Too much reflux wastes energy and loads the column unnecessarily. Finding the right balance means working with robust vapor–liquid equilibrium data and a simulation model validated against real plant behavior.
The Methanol Rectification Process, Step by Step
A typical methanol rectification section moves through the following stages. Actual flowsheets vary, but the logic is consistent.
1. Crude methanol receipt and degassing
Crude methanol arrives from the synthesis section at high pressure and is let down in a flash vessel. Most dissolved gases (H₂, CO, CO₂, CH₄, N₂) are released here. The flash gas is typically sent to fuel gas or recycled, since it still carries heat value and some methanol vapor.
Crude is then collected in a crude methanol storage tank, which also acts as a buffer so the distillation section sees steady feed even when synthesis conditions fluctuate. Tanks are nitrogen-blanketed and vented through appropriate flame arrestors and, where needed, a vent condenser to recover methanol.
2. Feed conditioning
Before entering the first column, crude methanol is usually:
- Preheated with hot streams from the process (such as bottoms or product) to recover heat.
- Neutralized with a small dose of caustic (sodium hydroxide) to bring the pH to a mildly alkaline range. This protects equipment from acid corrosion, converts organic acids into non-volatile salts and hydrolyzes certain esters.
- Filtered where required to remove catalyst fines or other solids.
Feed conditioning looks minor on a flow diagram, but it often decides whether the downstream columns run smoothly or struggle with fouling and quality drift.
3. Topping (light-ends) column
The first column removes the light ends. Its job is to take overhead the dissolved gases, dimethyl ether, methyl formate, acetaldehyde and low-boiling hydrocarbons, while keeping methanol in the bottom stream.
Key features include:
- A reflux condenser (often with a vent condenser or secondary cooler) to minimize methanol loss with the vent stream.
- A purge or vent of light ends, typically to fuel gas or a flare system, depending on plant design.
- Process water addition (in extractive designs) at the top section to improve removal of hydrocarbons and ketones.
- A reboiler, commonly heated with low-pressure steam.
The bottoms from this column, now free of most light components, is called topped methanol and moves to the refining section.
4. Refining (main) column
This is the heart of the plant. In the refining column, methanol is taken as the overhead product (or as a near-top side draw), while water and heavier components move toward the bottom.
Important characteristics:
- A high number of trays or equivalent packed height, because a very pure product must be separated from a water-rich bottoms and from close-boiling impurities.
- A fusel oil side draw from lower trays, where higher alcohols concentrate. If this stream is not withdrawn, higher alcohols can accumulate in the column, build up inside the reflux loop and eventually contaminate the product.
- A bottoms stream that is predominantly water, with only trace methanol, sent to wastewater treatment or reused after suitable treatment.
- Careful temperature profile control, because the column’s temperature gradient is a sensitive indicator of how well the separation is holding.
5. Pressure column (in multi-column designs)
In larger plants, the refining duty is split between two columns operating at different pressures. A pressure column runs at elevated pressure, which raises the temperature at which its overhead vapor condenses. That condensing vapor then serves as the heating medium for the reboiler of the atmospheric column.
This is an elegant form of heat integration: the same heat is used twice. The overall steam demand of the section falls substantially compared with a simple two-column layout, which makes the design well suited to large capacities.
6. Recovery column (where applicable)
Some flowsheets include a smaller column that recovers methanol from the fusel oil and water-rich side streams. Pulling this residual methanol back into the main train improves overall recovery and keeps the waste streams clean.
7. Product cooling, testing and storage
Methanol from the refining columns is cooled, typically in a product cooler, and sent to day tanks where it is sampled and tested against specification before transfer to bulk storage. Off-spec material can be diverted to a slop tank and reprocessed.
Product tanks are built to handle a flammable liquid, with nitrogen blanketing, proper venting, grounding, and, depending on volume, floating roof designs or internal floating covers.
Common Column Configurations
The number of columns depends on capacity, product grade and the level of heat integration desired.
Two-column system
A topping column followed by a single refining column. This is the simplest arrangement and suits smaller plants or applications where the grade requirement is moderate. It is compact and straightforward to operate.
Three-column system
A topping column, a pressure column and an atmospheric column. The pressure and atmospheric columns share heat as described above. This is a widely used configuration for medium-to-large plants because it combines high purity with good energy efficiency.
Four-column system
A topping column, a pressure column, an atmospheric column and a recovery or finishing column. It provides the highest flexibility and recovery and is the choice when stringent specifications must be met at very large capacities or with difficult crude compositions.
Each of these can be adapted with extractive distillation, side-draw arrangements or hybrid separation steps. The right choice depends on feed composition, throughput, target grade and the utilities available at site.
Key Design Considerations
A rectification plant is only as good as the decisions that go into its design. Here are the main areas where engineering judgment matters most.
Column internals
Trays and packing both have a place. Sieve and valve trays are robust, tolerate fouling better and are common in large-diameter columns. Structured packing offers a low pressure drop and high efficiency, which is attractive for revamps or where the vapor-liquid load is moderate. The choice depends on turndown requirements, fouling tendency, column diameter and the pressure profile.
Feed location and reflux
Locating the feed tray correctly ensures that the composition on the tray matches the incoming stream, avoiding remixing losses. Reflux ratio, together with stage count, sets the separation. Simulation using validated property packages is essential for fixing these values before detailed design.
Reboilers and condensers
Reboiler types such as thermosiphon, kettle and forced circulation each have strengths. Thermosiphon reboilers are common for clean services. Condensers must be sized for peak loads, include proper venting for non-condensables, and be arranged to keep methanol losses to the vent system low.
Materials of construction
Crude methanol after neutralization is generally mild, but locations with higher acid content or chloride levels need more careful selection. Stainless steels (304L/316L) are widely used in the refining section. Carbon steel is acceptable in many noncorrosive services, while specific hot spots may warrant upgraded materials. Material selection should be based on the actual impurity profile, not on assumptions.
Heat integration
Beyond the pressure–atmospheric column pairing, designers recover heat by preheating the feed against bottoms water or hot product. Well-designed heat networks reduce steam demand and lower the load on cooling water, improving the environmental footprint of the plant.
Hydraulics and turndown
Plants rarely run at exactly design rate. Good design checks flooding, weeping, entrainment and minimum vapor load across the expected operating range, so the plant remains stable during ramp-up, ramp-down and feed disturbances.
Plant layout
Equipment must be arranged for safe access, proper hazardous-area classification, adequate fire separation and clear maintenance paths. In methanol service, layout is a safety topic as much as an engineering convenience.
Instrumentation, Control and Quality Assurance
Methanol rectification responds well to automation. Common control strategies include:
- Temperature-based composition control in each column, using a sensitive tray temperature as an inferential measurement of product quality.
- Cascade control of reflux and reboiler duty, linked to level and temperature loops.
- Feed-forward control to counter feed flow and composition changes.
- Pressure control with split-range arrangements for condensers and vents.
- Online analyzers (such as gas chromatographs and density meters) for key streams, supported by regular laboratory testing.
In the laboratory, standard tests cover methanol purity by gas chromatography, water by Karl Fischer titration, acidity, permanganate time, color, specific gravity, distillation range, non-volatile residue and trace metals. A reliable QC routine, with defined sampling points and response actions, ensures that off-spec production is caught early and corrected before it reaches storage.
A modern DCS or PLC-based control system with proper alarm management, interlocks and trend logging also makes plant operation more predictable and makes troubleshooting far easier.
Safety and Environmental Responsibility
Methanol is flammable, toxic and burns with a nearly invisible flame in daylight. A rectification plant therefore demands a disciplined approach to safety from the very first design stage.
Fire and explosion protection
- Hazardous area classification and use of suitably rated electrical equipment.
- Nitrogen blanketing and inerting for tanks and vessels.
- Flame arrestors on vents, proper grounding and bonding to control static electricity.
- Pressure relief devices connected to a safe discharge or flare system.
- Fixed and portable fire protection, foam systems where applicable, and gas and flame detection suited to methanol.
Toxicity and exposure
Methanol can be harmful through inhalation, skin contact and ingestion. Plants should provide closed sampling systems, adequate ventilation, appropriate PPE, eyewash and safety showers, and clear training for operators and maintenance staff.
Environmental performance
- Vent recovery. Scrubbers or condensers to capture methanol vapor before release.
- Wastewater handling. Column bottoms and process condensate contain traces of organics and should be treated before discharge or reuse.
- Emission control. Flash gas and vent streams should be routed to fuel use or flare rather than released.
- Regulatory compliance. Plants must meet applicable pollution control, factory and process safety requirements, and conduct hazard studies such as HAZOP and SIL assessments during design.
Safety is not an add-on. Plants that integrate safety thinking into process design tend to run smoother, with fewer shutdowns and fewer surprises.
Common Operational Challenges and How to Address Them
Even a well-designed plant will meet challenges during operation. Some of the most frequent ones are:
Off-spec permanganate time or acetone. Often linked to trace carbonyls or unsaturated compounds. Corrective actions include adjusting extractive water in the topping column, revisiting feed pH and checking the reflux ratio in the refining column.
Water in the product. Usually due to insufficient reflux, an unstable temperature profile or a flooded or fouled tray section. Check column pressure drop, reboiler duty and tray temperatures.
Ethanol or higher alcohols in product. Indicates that the fusel oil side draw is too low or that the column profile is poorly controlled. Increase the side-draw rate or revisit the draw tray location.
Foaming and flooding. May result from contaminants, a sudden change in feed composition or excessive vapor load. Review feed quality, antifoam compatibility (if used) and loading limits.
Fouling in reboilers and trays. Often caused by waxes, heavy hydrocarbons or solids carried with the crude. Improved feed filtration, periodic cleaning and, where relevant, wax-handling measures help.
High methanol loss in vents or wastewater. Check condenser performance, vent condenser temperatures and the bottoms composition of each column. Losses of this kind are usually a symptom of operating conditions drifting away from design.
Corrosion. Often a result of acidic feed or chloride ingress. Maintain feed pH control and monitor corrosion indicators regularly.
A well-trained operations team, supported by good documentation and a clear commissioning procedure, resolves most of these issues quickly. This is why thorough start-up support is an important part of any plant setup.
Where Rectified Methanol Is Used
Purified methanol serves a wide range of industries:
- Formaldehyde for resins, adhesives and plywood.
- Acetic acid through carbonylation.
- MTBE and other fuel additives.
- Biodiesel, where methanol is the reagent for transesterification.
- DME and methanol-to-olefins (MTO/MTP) for fuels and petrochemical feedstocks.
- Methanol as a fuel or blending component, including marine and transport applications.
- Solvents, pharmaceuticals, agrochemicals and laboratory use.
- Fuel cells and hydrogen carriers, as interest in cleaner energy pathways grows.
India in particular has shown strong interest in building a methanol-based ecosystem, supported by national policy initiatives that encourage domestic production and use, including routes based on coal, biomass, municipal waste and captured CO₂. That interest naturally increases the demand for well-engineered methanol purification units.
Rectification Across Different Feedstocks and Sources
The same fundamental principles apply across routes, but details change.
Natural gas-based methanol. Typically produces crude with a moderate water content and a relatively well-understood impurity profile.
Coal, petcoke or biomass-based methanol. Synthesis gas from these sources can carry different trace contaminants, so crude methanol may contain a broader set of by-products. Rectification trains for these plants are often designed with extra flexibility and more robust feed treatment.
Green and e-methanol. Methanol made from captured CO₂ and renewable hydrogen has higher water content because of the CO₂-based reaction. Rectification must handle the greater water load while still meeting a demanding spec.
Waste methanol and solvent recovery. Many industries, particularly pharma and chemical manufacturing, generate spent methanol or methanol–water mixtures. Rectification units for recovery can be configured as batch or continuous systems to return methanol to a reusable grade.
A process engineering partner should be able to size and configure the unit for whichever source applies, rather than offering a one-size-fits-all design.
Setting Up a Methanol Rectification Plant: A Practical Roadmap
Whether you are building a new facility, adding a refining section to an existing synthesis unit or planning a solvent recovery plant, the project typically moves through these stages.
1. Define the requirement. Clarify the feed source and composition, capacity, target product grade, operating mode (continuous or batch), available utilities and the intended end use of the product.
2. Process simulation and feasibility. Develop a validated simulation model, select the column configuration, estimate utility demands and establish the mass and energy balance.
3. Basic engineering. Prepare process flow diagrams (PFDs), piping and instrumentation diagrams (P&IDs), equipment data sheets, control philosophy, safety studies and plot plan.
4. Detailed engineering. Develop mechanical design, piping layouts, structural and civil requirements, electrical and instrumentation design, and procurement specifications.
5. Procurement and fabrication. Source columns, heat exchangers, pumps, vessels, instruments and control systems to specification, with proper inspection and quality documentation.
6. Construction and erection. Install equipment under controlled safety practices, followed by pressure tests, cleaning and inspection.
7. Pre-commissioning and commissioning. Complete loop checks, run-in of rotating equipment, solvent or water trials, introduction of crude methanol and gradual stabilization of each column.
8. Performance run and handover. Demonstrate product quality and throughput, train operators, and hand over documentation for ongoing operation and maintenance.
Each stage benefits from process engineers who understand both the chemistry and the practicalities of site execution. Gaps between design intent and field reality are the most common source of delays and operating problems.
How FOSTECHNO Process & Engineering Private Limited Can Support Your Project
FOSTECHNO Process & Engineering Private Limited is focused on process plant engineering, and methanol rectification is a natural fit for that expertise. Our approach is built on a few principles:
- Process-first thinking. We start from your feed, your target grade and your site conditions, then design the rectification train to suit them.
- End-to-end support. From process design and engineering through to equipment selection, installation support and commissioning assistance, we aim to keep one coordinated team behind the project.
- Safety by design. Hazard reviews, hazardous-area planning and robust instrumentation are built into the design from the outset.
- Operability and quality. We design for stable operation, reliable product quality and straightforward maintenance, so that your team can run the plant with confidence.
- Flexibility. Whether you need a new rectification section, a debottlenecking study for an existing unit or a solvent recovery system, we tailor the solution to the application.
If you are planning a methanol rectification or methanol recovery plant, we would be glad to discuss your requirements and help you move from concept to commissioning.
Frequently Asked Questions
What is the difference between distillation and rectification?
Rectification is a form of distillation that uses a column with repeated vapor–liquid contact and reflux, allowing a far sharper separation than a single-stage evaporation and condensation.
Why does methanol need more than one column?
Crude methanol contains impurities with very different volatilities. Light ends must be removed first, and then water and heavy components are separated from the methanol. Using separate columns for each task gives better purity, better control and, in multi-pressure systems, better heat utilization.
What is the role of the fusel oil side draw?
Higher alcohols tend to accumulate in the middle of the refining column. Withdrawing them through a side draw prevents buildup and protects the quality of the methanol product.
Can rectification handle different grades of methanol?
Yes. By adjusting the number of columns, internals, reflux and additional polishing steps, the plant can be designed to meet grades ranging from fuel-grade to Grade AA and stricter specifications.
Can waste methanol be recovered through rectification?
Yes. Methanol–water and methanol-solvent mixtures can be separated in dedicated recovery units, returning the methanol to a reusable grade while keeping the waste stream clean.
Is automation necessary?
Automation is strongly recommended. Tight control of temperature profiles, reflux and pressure is key to consistent quality, and a good control system also supports safety.
How long does it take to commission a rectification plant?
Timelines depend on capacity, configuration and site readiness. Commissioning itself is usually a structured, phased activity that proceeds from utilities and instruments to column start-up and stabilization.
Conclusion
Methanol rectification is a classic example of process engineering at work: a problem that looks simple on paper (separating a liquid mixture) becomes a careful balance of thermodynamics, hydraulics, chemistry, control and safety once real-world impurities and tight specifications come into play. A well-designed rectification section transforms crude methanol into a consistent, high-purity product, and does so safely, efficiently and reliably.
The key points to remember are these:
- Crude methanol contains water, gases, light ends, ketones, higher alcohols and trace contaminants that all need dedicated handling.
- A typical train combines a topping column, one or more refining columns and, where required, a recovery column.
- Heat integration, correct internals, fusel oil removal and good feed conditioning make the difference between an adequate plant and an excellent one.
- Safety, instrumentation and quality assurance must be designed in, not added later.
Planning a Methanol Rectification Plant? Let’s Talk.
If you are looking to set up a methanol rectification or methanol recovery plant, FOSTECHNO Process & Engineering Private Limited is ready to help you from concept to commissioning.
Connect with us today to discuss your plant setup requirements.
Phone: +91 9696177472
Email: info@fostechnos.com
Website: https://fostechnos.com/
Tell us your feed, capacity and target grade, and our team will get back to you with the right process solution.
[Contact FOSTECHNO Now →]https://fostechnos.com/contact/
